Folding trailer for light motorbikes
HD Eco
2.460,00€ inc VAT
Perfect for motorbikes
(< 246kg).
In stock, please contact us
Product Description
Download datasheets :

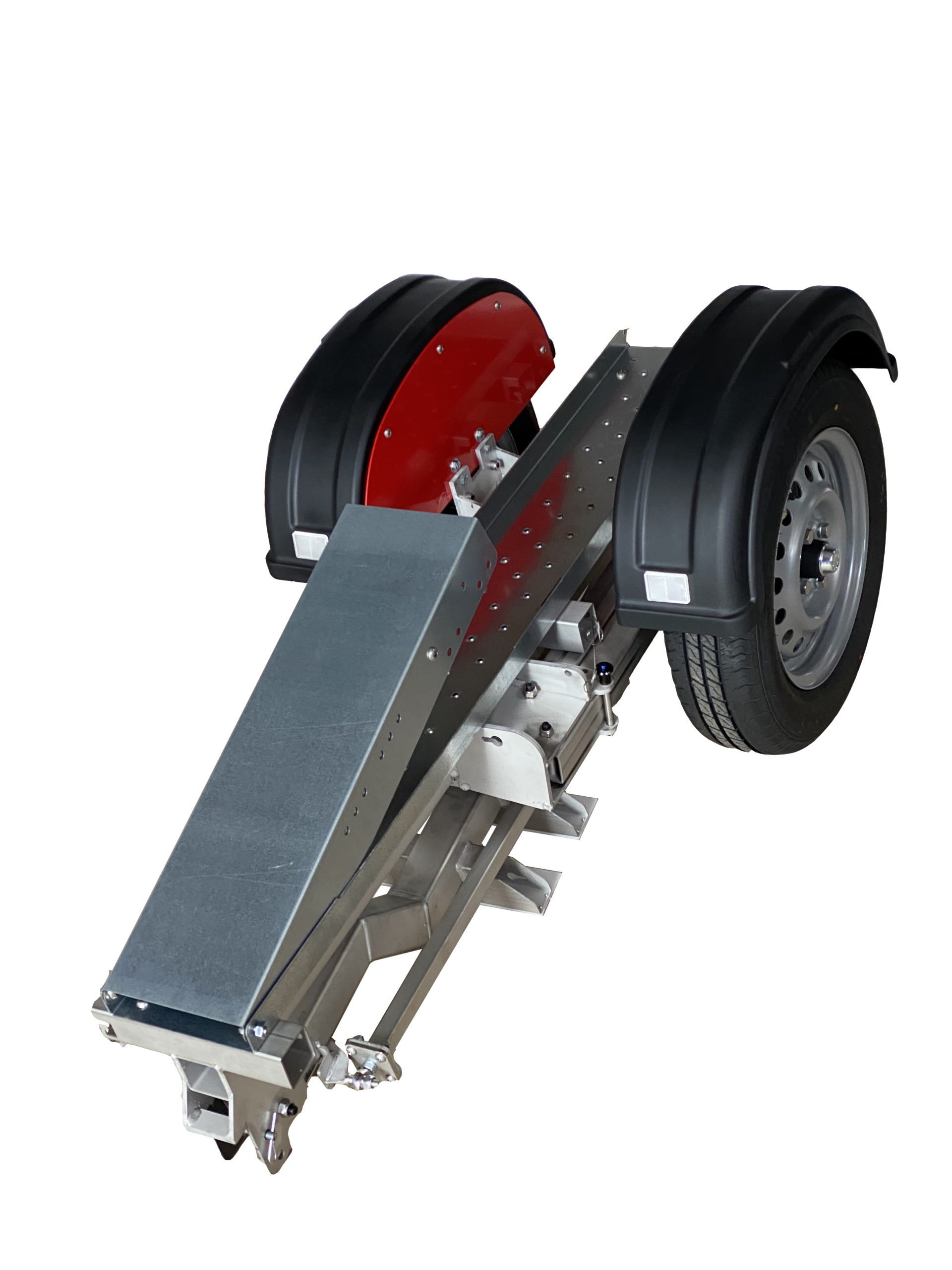

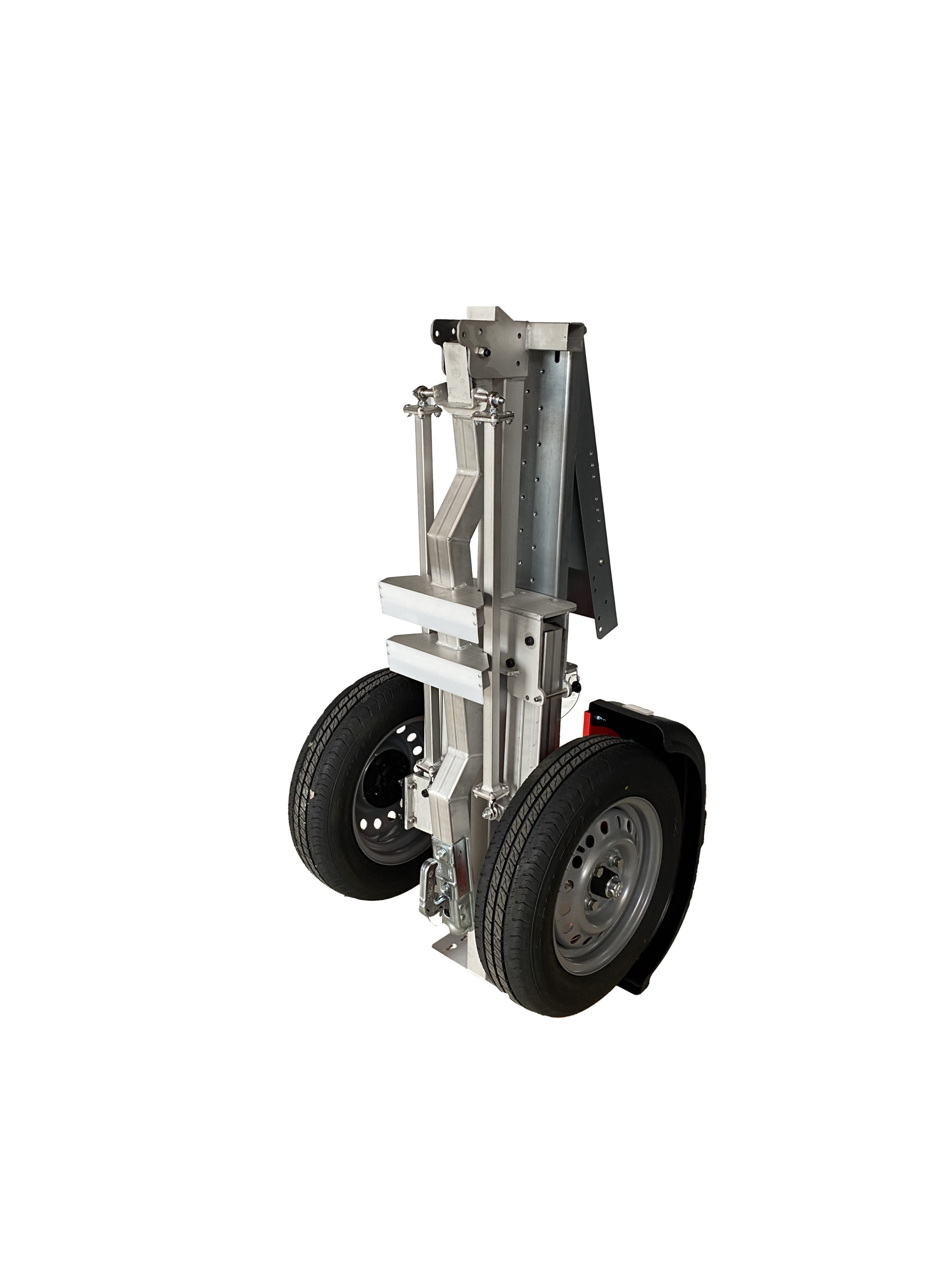

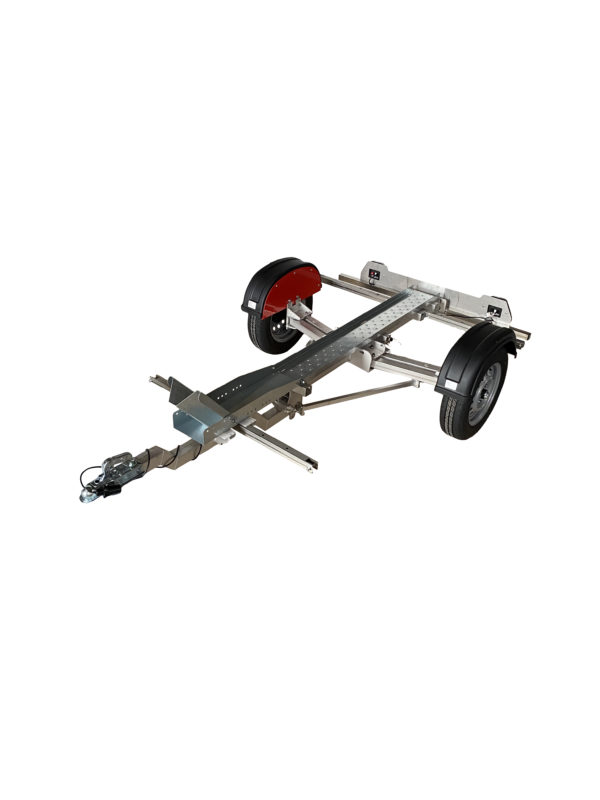

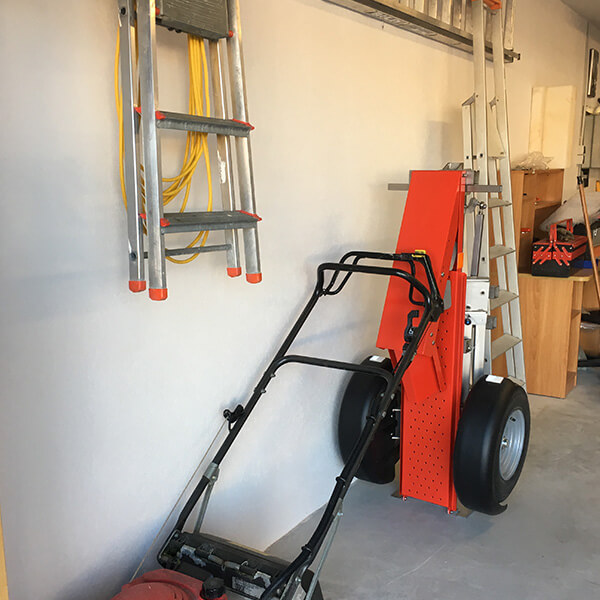

In its HD Eco version, the OZICONCEPT folding trailer will allow you to load all your motorcycles up to 246 Kg with a simple and quick procedure to unfold and fold it in seconds. Once folded, you simply handle it and go to store it in the corner of a garage or else, laundry room, small workshop etc…
Tips from the designer :

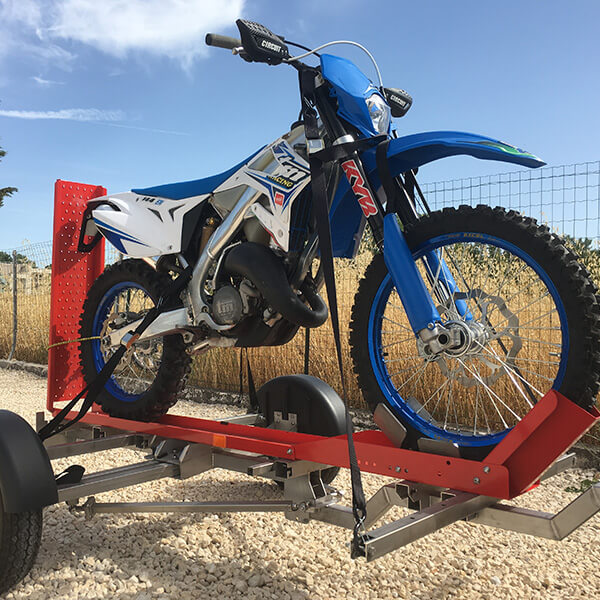

This model will lend itself perfectly to off-road or sport bikes. The loading mode of the motorcycle remains classic by standing next to the motorcycle during loading and unloading operations. Therefore, although the chassis can support a load of 246 Kg, we do not recommend loading motorcycles over 200 Kg with this loading method for safety reasons unless the operator is very tall.
Product Features
| HD ECO 350 | |
| SPECIFICATIONS | |
| Dimensions unfolded in cm | 265x160x70 |
| Dimensions folded in cm | 74x65x152 |
| Folding unfolding process | 10 seconds |
| Tare weight | 104 Kg |
| Useful load | 2246 Kg |
| GVW | 350 Kg |
| Loading height | 37 cm |
| Tubular chassis | Stainless steel |
| Suspension housing | Stainless steel |
| CE certification number | e2*2007/46*0583*01 |
| Manufacturing | France |
| EQUIPEMENTS | |
| Complete rail 200 mm | Galvanized |
| Access rail 200 mm | Galvanized |
| Access rail | Galvanized |
| Wheel locking device | NO |
| Hitch AL-KO | AK7 V PLUS 60x60 |
| Bearing Hub AL-KO | NF375 |
| 13' wheel | 145/80 R 13 79N 4x100 |
| Mudguards | Powder coated side |
| Led lighting | lino 1 |
| Harness | Complete |
| 7 pin plug | YES |
| 2 Strap down cross members | Stainless steel |
